| Specifications | Tri-Mode Version | Wired Version |
|---|---|---|
| Model | ANEEX EK68D | ANEEX EK68D |
| Keyboard Type | Mechanical Keyboard | Mechanical Keyboard |
| Number of Keys | 68 Keys | 68 Keys |

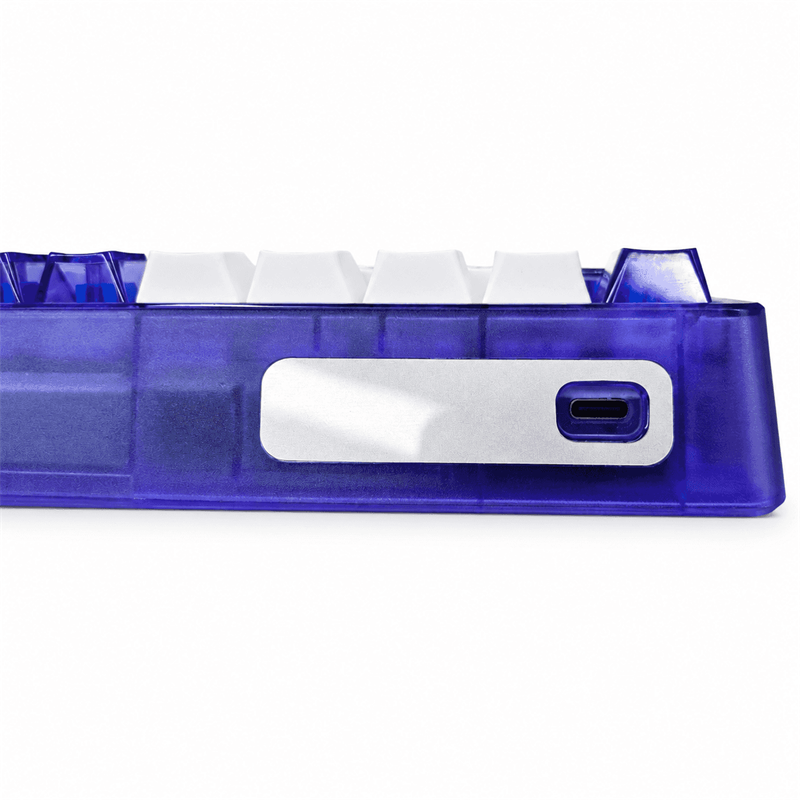

| Connectivity | 2.4GHz Wireless / Bluetooth / Wired USB-C | Wired USB-C |
| Case | Injection-Molded Frosted Translucent Case + Colored Bottom Shell | Injection-Molded Frosted Translucent Case + Colored Bottom Shell |
| Backlighting | ARGB (Addressable RGB) | Mixed Backlighting (Rainbow) |
| Anti-Ghosting | Full-Key Anti-Ghosting | Full-Key Anti-Ghosting |
| Keycaps | Dye-Sublimation Keycaps + Transparent Keycaps | Dye-Sublimation Keycaps + Transparent Keycaps |
| Switches | Outemu Hot-Swappable Red Switches | Domestic Soldered Mechanical Switches |
| Switch Installation | Hot-Swappable | Soldered |
| Battery Capacity | 3000mAh | — |
| Product Dimensions | 320 × 118 × 40 mm | 320 × 118 × 40 mm |
| Net Weight | 630 ± 20 g | 630 ± 20 g |
| Cable | 1.5 m PU Cable | 1.5 m PU Cable |
| Included Accessories | 1.5 m PU Cable / User Manual / Puller Tool | 1.5 m PU Cable / User Manual |

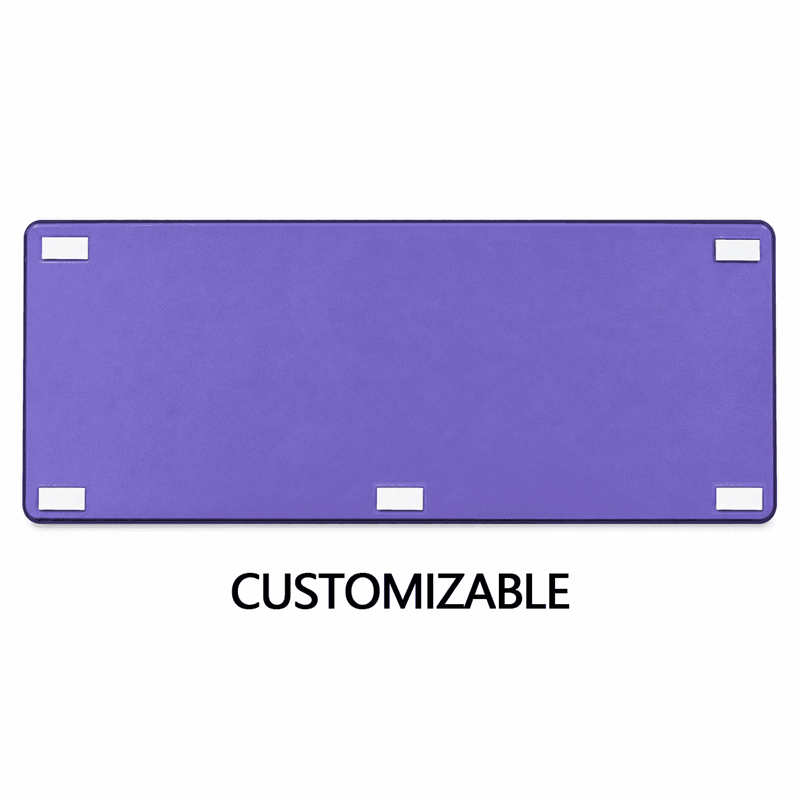

| Custom Bottom Shell | Custom Color Available from 2,000 Units MOQ | Custom Color Available from 2,000 Units MOQ |
How many keys does the ANEEX EK68D have?
The ANEEX EK68D features a compact 68-key mechanical keyboard layout designed to save desktop space while retaining essential typing and gaming functions.
What connection modes does the EK68D Tri-Mode version support?
The Tri-Mode version supports 2.4GHz wireless, Bluetooth, and wired USB-C connectivity.
Is the EK68D hot-swappable?
The Tri-Mode version is equipped with Outemu hot-swappable Red switches. The Wired version uses soldered mechanical switches and is not hot-swappable.
What type of backlighting does the EK68D use?
The Tri-Mode version features ARGB (Addressable RGB) backlighting, while the cost-effective Wired version uses Mixed Backlighting (Rainbow).
What is the battery capacity of the EK68D?
The Tri-Mode wireless version is equipped with a 3000mAh rechargeable battery. The Wired version does not require a battery.
Does the EK68D support full-key anti-ghosting?
Yes. The EK68D supports full-key anti-ghosting for reliable simultaneous key input during gaming and intensive typing.
What type of keycaps does the EK68D use?
The EK68D combines dye-sublimation keycaps with transparent keycaps for a distinctive visual appearance.
What are the dimensions and weight of the EK68D?
The keyboard measures 320 × 118 × 40 mm and has a net weight of approximately 630 ± 20 g.
What accessories are included with the EK68D?
The Tri-Mode version includes a 1.5 m PU cable, user manual, and puller tool. The Wired version includes a 1.5 m PU cable and user manual.
Can the EK68D be customized for OEM and ODM projects?
Yes. ANEEX supports OEM/ODM customization for bulk projects, including product configurations, private branding, regional layouts, packaging, and other project-specific requirements.
